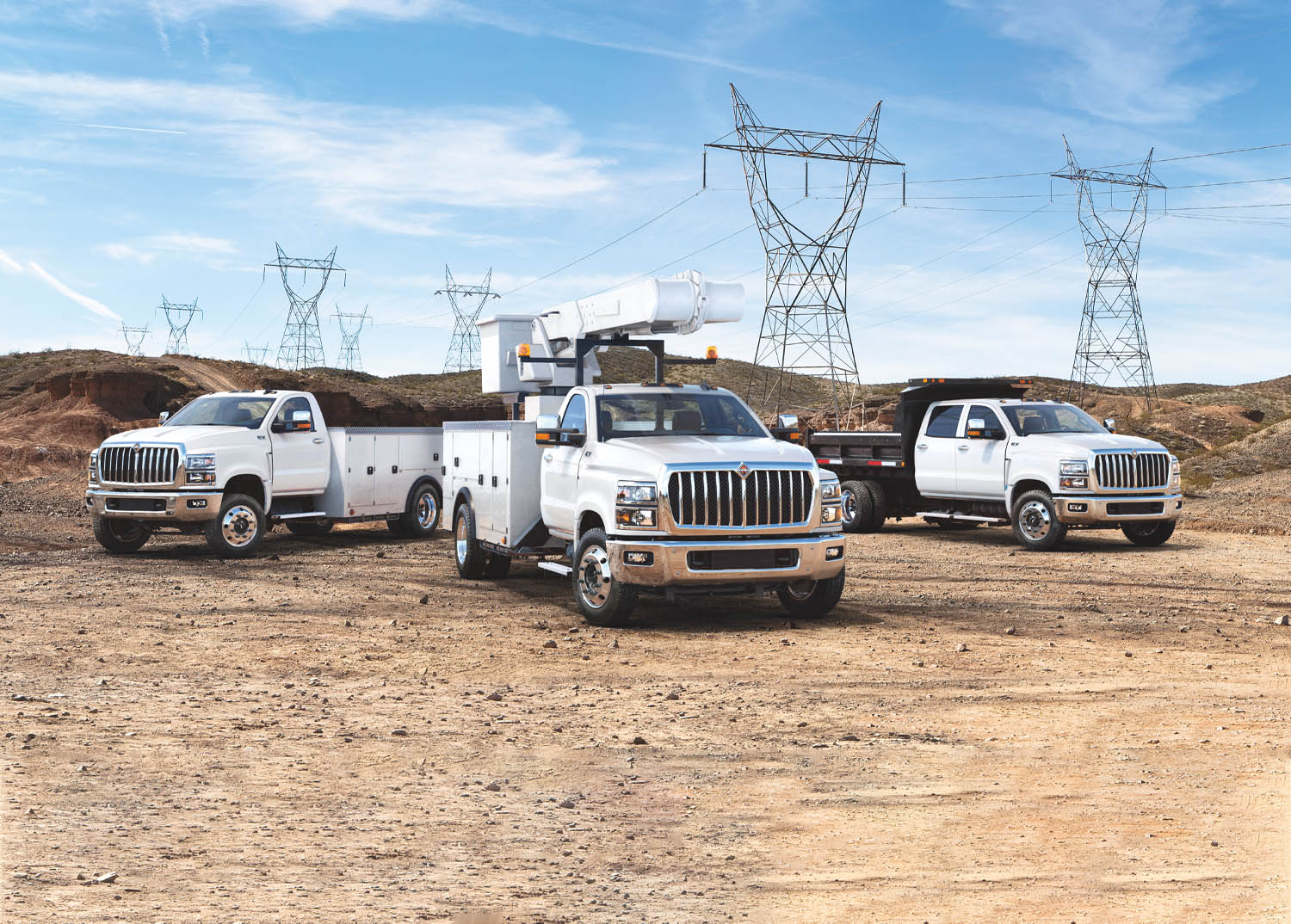

CV Series

Detailed Specs

Strength
GVW
16,000 - 22,900 lbs.
Configurations
Axle Configurations
4x2
4x4
Cab Interior Trim Levels
Classic
Diamond
Cab / Sleeper Configurations
Day Cab
Crew Cab (no sleepers)
Models
CV515: 115" BBC, 34" BA
Wheelbase Range
141 - 243"
Drivetrain
Engines
International® 6.6
V8 Turbocharged Diesel Engine, 700 lb. – ft. torque @1600 RPM
Exhaust Systems
Horizontal, Frame Mounted, Right Side Under Cab Tailpipe
WB greater than 141”: Straight tailpipe, exits right or available left side ahead of rear axle 141" WB: Over rear axle, exits behind rear axle
Frame Rails
High Strength, Low Alloy Steel 50,000 PSI
Front Axles
Dana Spicer:
6,000 - 8,000 lbs.
Front Suspensions
Taper Leaf Shackle with Shock Absorbers:
6,000 - 7,000 lbs.

Parabolic Taperleaf with Shock Absorbers:
7,500 - 8,000 lbs.
Rear Axles
Single Rear Axle
Dana: Single Reduction: 10,000 – 15,500 lbs.
Rear Suspensions
Spring, Vari-Rate:
11,000 - 15,500 lbs.

Air, International® Ride Optimized Suspension (IROS):
12,000 - 15,500 lbs. (4x2 only)
Transmissions
Allison 6-speed:
1700, 1750, 2700 Series
Electrical System
Alternators
Denso SC2 Brush Type 150 Amps
Denso SC6 Brush Type 220 Amps
Denso SC6 Dual Brush Type 150 and 220 Amps
Battery Systems
(2) Batteries:
1100 – 1300 CCA

(3) Batteries:
2250 CCA
Brakes
Hydromax with Traction Control and Four Channel ABS
Fuel Tanks
Single, Rectangular 25 Gallon, Mounted Between Rails Forward of Rear Axle
Single, Rectangular 40 Gallon, Mounted between Rails Behind Rear Axle
Dual, Rectangular 25 Gallon and 40 Gallon
Headlights
Halogen Composite
Power Steering
Bosch:
S2 8014 Plus
Tires
Goodyear
Continental
