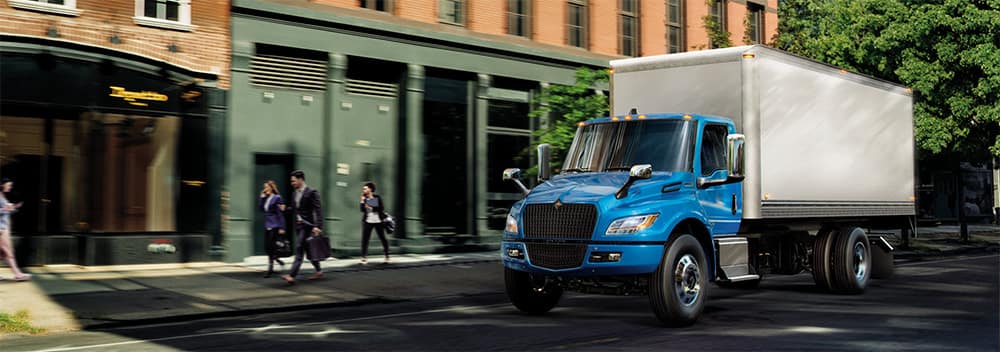

eMV Series

The eMV is built on the same proven foundation as the diesel MV which includes built-in corrosion protection, a huck bolted frame ladder, chassis braking including anti-lock brake system (ABS), electronic stability control (ESC) and automatic traction control (ATC) as well as numerous straight rail upfit possibilities. Key enhancements that come standard with the eMV include three degrees of regenerative braking. Easy to use, comfortable to operate and offering iron-clad dependability, the new eMVTM Series is a groundbreaking solution with real-world usability. It’s the electric truck – done just right.

Build Your Own eMV

Brochure

Key Features

Range: 135 miles
Peak power: 335hp (135 mi battery)
3 levels of regenerative braking
Acceleration equal to or better than diesel
Robust hill-climbing ability
Lower maintenance compared to diesel
Available turn-key charging solutions from NEXT eMobility Solutions

eMV Specifications

GVW

25,999 and 33,000 lbs.

Models/BBC/BA

MV60E
107.9" BBC, 40" BA

Cab Configurations

Day Cabs

Wheelbase Options

217", 236", 254" & 272"

Rear Axles

Single Rear Axle (4x2) - Dana Spicer 23,000 lb.

Rear Suspension

21,000 lb single axle with shocks
IROS Air Suspension

Front Axle

Dana Spicer I-Beam 12,000 lb.

Front Suspension

Spring, Parabolic Taper Leaf: 12,000 lbs.

Rear Axle Ratio

6.83

Electrical System

High Voltage

210 kWh Lithium Iron Phosphate with dedicated HVAC system

Auxiliary Battery System

12 volt, 2 AGM Batteries- Recharged through high voltage system

Other Electric Systems

608 volt operating voltage

LED Headlights

Motor

Direct Drive Electric Motor

Peak Motor Torque - 1,700 ft-lbs

Continuous Motor Torque - 738 ft-lbs

Miscellaneous

Air Brakes with ABS, 4 channel Electronic Stability Program with Traction Control

Steering

RW/Ross Power
