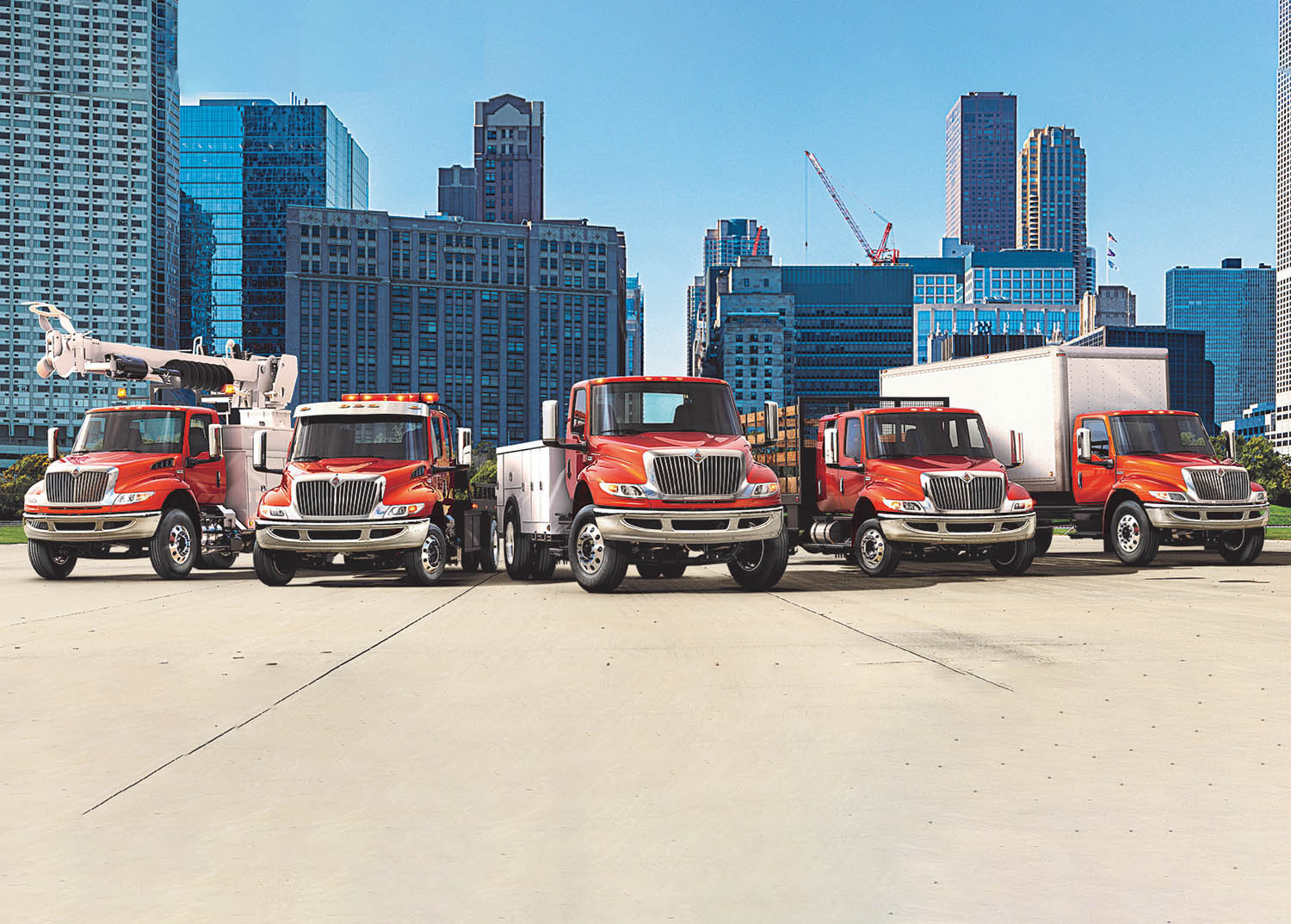

MV Series

Detailed Specs

Strength
GVW
23,500 - 44,600 lbs.
21.5 - 54.6 lbs.
Configurations
Axle Configurations
4x2 SBA
6x4 SBA
Cab Interior Trim Levels
Classic Diamond
Cab / Sleeper Configurations
Day Cab
Extended Cab
Crew Cab
Models
MV607: 107" BBC, 40" BA
MV60H: 107" BBC, 40" BA
Wheelbase Range
128 - 254"
Drivetrain
Engines
Cummins® B6.7:
200 hp, 520 lb.-ft. torque, up to 325 hp, 750 lb.-ft. torque

Cummins® L9:
Up to 350 hp, 1,000 lb.-ft. torque
Exhaust System
Single, Horizontal, After-treatment Device Frame Mounted Right, Under or Back of Cab, Horizontal or Vertical Tailpipe
Frame Rails
Clean CA available for body mounting


Heat-Treated Alloy Steel
120,000 PSI

High Strength Low-Alloy Steel
50,000 - 80,000 PSI
Front Axles
Dana Spicer:
8,000 - 14,000 lbs.

Meritor:
8,000 - 14,600 lbs.
Front Suspensions
Spring Parabolic Taper Leaf:
8,000 - 14,600 lbs.

Parabolic Taperleaf with Shock Absorbers:
7,500 - 8,000 lbs.
Rear Axles
Single (4x2)
Meritor: 13,500 - 30,000 lbs.
Dana Spicer: 13,500 - 30,000 lbs.

Tandem (6x4)
Meritor: 34,000 - 40,000 lbs.
Rear Suspension
IROS Air Suspension Available for Single and Tandem Axle


Spring Single VariRate:
13,500 - 30,000 lbs.

Tandem, 4-Spring Multileaf:
34,000 - 40,000 lbs. (6x4)
Transmissions
Allison:
1000, 2000, 3000 Series (HS, EVS, RDS, MH) Automatic

Allison:
3000 TRV Series Automatic

Eaton® Fuller:
6-, 10-speed manual

Eaton® Procision:
7 speed Dual Clutch Automatic

Eaton Fuller Advantage
10-speed Fully Automated Manual
Other Components
Alternators
12 Volt 160 - 325 amp
Battery Systems
12 Volt, 2 to 3 batteries
Brakes
Hydraulic Disc With Four Channel ABS
Air Brakes With ABS
Electrical System
Diamond Logic® Electrical System
Fuel Tanks
40 - 140 Gallon Non Polished and Polished Aluminum
Headlights
Long Life Halogen
Steering
TRW/Ross Power
Sheppard Power
